Playing with IR

Controlling RGB LED Colors Using the IR Remote Control

After you found the code for each button, you can use it to control the commands. In this example, we connected an RGB LED to Arduino and use the remote control to change the colors. To do this, specify a few buttons on the remote control and save their code. In this example, buttons 1 to 3 are used. Then assign a specific color to each button. At the end by pressing any of the 1 to 3 keys, the LED changes it's color.

For more colors, you can find the code for each color here.

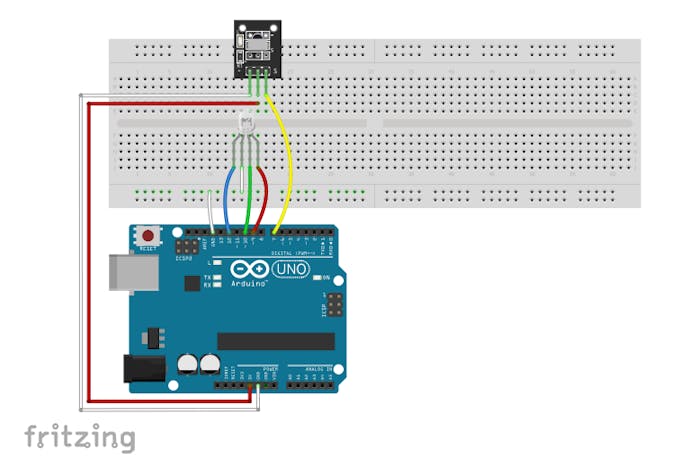

Circuit


Code#include <IRremote.h>

int RECV_PIN =6;
int bluePin = 11;
int greenPin = 10;
int redPin = 9;
IRrecv irrecv(RECV_PIN);
decode_results results;
void setup(){
 Serial.begin(9600);
 irrecv.enableIRIn();
 pinMode(redPin, OUTPUT);
 pinMode(greenPin, OUTPUT);
   pinMode(bluePin, OUTPUT);
}
void loop(){
   if (irrecv.decode(&results)){
int value = results.value;
Serial.println(value);
       switch(value){
         case 12495: //Keypad button "1"
         //set color red
         analogWrite(redPin, 0xFF);
         analogWrite(greenPin,0x08);
         analogWrite(bluePin, 0xFB);
         }
       switch(value){
         case -7177: //Keypad button "2"
         //set color skyblue
         analogWrite(redPin, 0x00);
         analogWrite(greenPin,0xFF);
         analogWrite(bluePin, 0xFF);
         }
         switch(value){
         case 539: //Keypad button "3"
          //set color pink
         analogWrite(redPin, 0x1F);
         analogWrite(greenPin,0x00);
         analogWrite(bluePin, 0x8F);
         }
         switch(value){
         case 25979: //Keypad button "4"
         //set color light green
         analogWrite(redPin, 0x11);
         analogWrite(greenPin,0x5F);
         analogWrite(bluePin, 0x01);
         }
       irrecv.resume();
   }
}
